Product Introduction
With the increasingly stringent environmental protection requirements, ammonia desulfurization technology in synthetic ammonia production has also received widespread attention. At present, activated carbon desulfurization technology is widely used in synthetic ammonia production.
Principle of activated carbon XDS-1 Ammonia Sulfur Remover is a physical and chemical adsorption method that achieves desulfurization by selectively adsorbing H2S in the air. Activated carbon is a porous material with a large number of micropores and mesopores in its internal and surface structures, and has a large specific surface area and adsorption capacity. When the gas containing H2S passes through the activated carbon, the H2S molecules will be adsorbed on the inner surface of the activated carbon. Under certain conditions, activated carbon can efficiently remove H2S molecules from the gas containing H2S.
Product Parameters
| Main technical indexes of XDS-1 Ammonia Sulfur Remover | |
| Other attributes | |
| Place of Origin | China |
| Classification | Catalyst |
| Other Names | Ammonia Sulfur Remover |
| Application | Ammonia desulfurization process |
| Brand Name | XUNDA |
| Model Number | XDS-1 |
| Main technical indexes | |
| Main raw materials | Activated carbon |
| Appearance | Black sphere |
| Purity | High purity |
| Size, mm | Customized |
| Size, mm | φ3×(3~15) |
| Average crushing strength, N/cm | ≥60 |
| Bulk density, kg/L | 0.60~0.70 |
| Sulfur content in the raw gas /mg .m-3 | 1000 |
| Sulfur content in the export gas/ mg .m-3 | 0~5 |
| Sulfur capacity, % | ≥10 |
| Temperature, ℃ | Normal atmospheric temperature~40 |
| Velocity, h-1 | ＜1500 |
| Bed height to diameter ration | ＞3 |
| Operating pressure, MPa | Atmospheric pressure ~2.0 |
| Supply Ability | |
| Manufactuer | Yes |
| Certification | ISO9001:2015 |
| Supply Ability | 9600 Ton/Tons per Year |
| Packaging and delivery | |
| Packaging Details | Jumbo bag or steel drum package |
| Port | Shanghai, Ningbo, Shenzhen, Qingdao |
| Selling Units | Single item |
| MOQ | 1ton |
| Lead Time | |
| Quantity (kilograms) | >1000 |
| Lead time (days) | To be negotiated |
Product Advantages
Ammonia Sulfur Remover has the following advantages:
①High efficiency:
XDS-1 Ammonia Sulfur Remover has a high specific surface area and adsorption capacity, which can efficiently remove H2S from the air.
②Good selectivity:
XDS-1 does not react or adsorb harmless gases such as oxygen and ammonia, and the desulfurization effect is stable and has little impact on the environment.
③Reliable safety:
XDS-1 does not require the addition of other desulfurizers, will not cause secondary pollution, and is easy to operate, simple and safe to maintain.
Application
It can be used to treat various industrial waste gases containing only SO2, such as flue gas from coal-fired power plants and exhaust gas from sulfuric acid plants.
process
Production equipment
Professional equipment operated by experienced staff to produce high-quality product.
Inspection equipment
Using Intelligent sulfur detector to determine the sulfur content of process gas treated by XDS-1 ammonia desulfurization agent. Ensure that the performance of XDS-1 ammonia desulfurization agent is qualified.
XDS-1

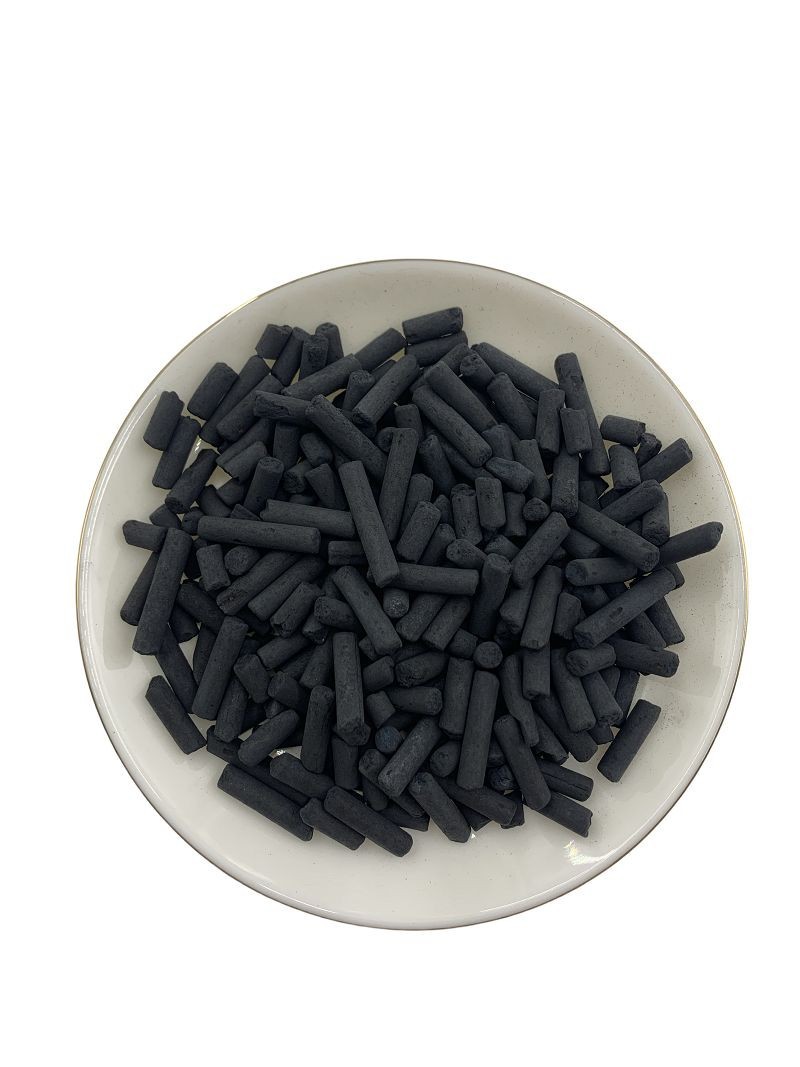

XDS-1 ammonia desulfurization agent is typicall produced to sphere and it can be also shaped according to your requirement.
Product production process
