Introduction

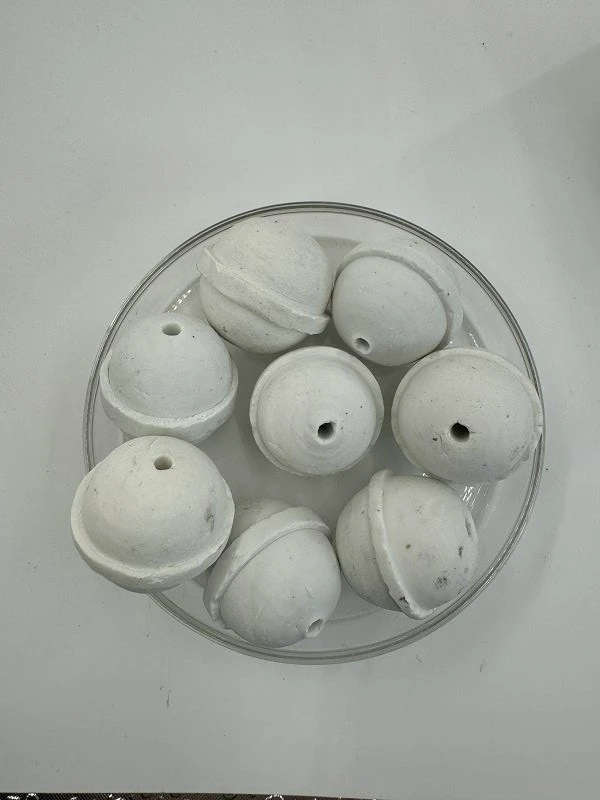

Ceramic Ball With Holes is a new product based on inert alumina ceramic balls developed by the Institute of our company. The hole is opened through the axis of the ball diameter. Thus ceramic ball not only has a certain mechanical strength, chemical stability and thermal stability, but also has larger specific area and void ratio, resulting in the increase of the dispersion and throughput of the feedstock and the decrease of system resistance.
Since it is put into the market, the product is warmly welcome and appraised by the customers. It is proved by the customers that this product can distribute gas and liquid better, compared with the formerly used covering and supporting packing under same operating conditions in the same reactor or furnace. With this product, the gas/liquid flow is obviously increased, the system resistance is obviously decreased, and there is no catalyst blocking and no coking, thus prolongs the catalyst service life.
Product Parameters
Main technical indexes of XD Ceramic Ball With Holes
| Industry-specific attributes | ||||||||||||
| Other attributes | ||||||||||||
| Place of Origin | China | |||||||||||
| Classification | Catalyst | |||||||||||
| Other Names | Ceramic Ball With Holes | |||||||||||
| Application | Protect the catalyst | |||||||||||
| Brand Name | XUNDA | |||||||||||
| Model Number | XD | |||||||||||
| Main technical indexes | ||||||||||||
| Al2O3 content, % | 20-90 | |||||||||||
| Water absorption, % | <3 | |||||||||||
| Acid resistance, % | >98 | |||||||||||
| Alkali resistance, % | >85 | |||||||||||
| Resistance to temperature sharp variation, ℃ | >500 | |||||||||||
| Temperarture resistance | >1500 | |||||||||||
| Specification and crushing strength | ||||||||||||
| Specification, mm | Φ 6 | Φ 8 | Φ 10 | Φ 13 | Φ 16 | Φ 20 | Φ 25 | Φ 30 | Φ 38 | Φ 50 | Φ 60 | Φ 75 |
| Crushing strength, N/g | > 300 | > 520 | > 600 | > 700 | > 1000 | > 1500 | > 1800 | > 2600 | > 3500 | > 5000 | > 6200 | > 7200 |
| Supply Ability | ||||||||||||
| Manufactuer | Yes | |||||||||||
| Certification | ISO9001:2015 | |||||||||||
| Supply Ability | 9600 Ton/Tons per Year | |||||||||||
| Lead Time | ||||||||||||
Notes
(1) The Al2O3 content of the ceramic balls with openings is 20-90%. There are 15 grades of product, every 5% of Al2O3 per grade. The product can also be produced according to the customers' requirements and Al2O3 content.
(2) For naturally bulking of the packing, bulk specific weight should be carefully considered. The amount of the product required is determined by actual packing volume.
Application
utilization
product
Sample
Ceramic Ball With Holes can be widely used in petrochemical, chemical and natural gas industries, replacing inert alumina ceramic balls as the covering and supporting packing for catalysts.
warehouse
Packaging
The ceramic ball is typically packaged in plastic woven bag. We also package it according to your requirement.
Product Advantages
1.Ceramic Ball With Holes has a certain mechanical strength.
2.Ceramic Ball With Holes has chemical stability.
3.Ceramic Ball With Holes has thermal stability.
4.Ceramic Ball With Holes has larger specific area and void ratio.
5.Ceramic Ball With Holes prolongs the catalyst service life.
Product production process
