TiO2 Catalyst

TiO₂ Based Catalyst for Sulfur Recovery is a newly developed catalyst of sulphur recovery whose main active component is TiO₂, at the same time,  several patented agents are added to further richen the function of catalyst. In order to coordinate the production import units, we arranged to develop the A988 TiO₂ Based Catalyst. A988 catalyst reached the world advanced level in the physics and chemistry as well as catalytic activity, meantime, its average crush strength and steady, heat steady, hydro-heat steady and attrition are superior to import catalyst. The industrial trial has proved that the activity of Claus and CS₂ hydrolysis of A988 TiO₂ Based Catalyst is obviously superior to catalyst abroad.

The main advantages of A988 TiO₂ Based Catalyst are as follows:

● Higher activity for hydrolysis reaction of organic sulfide and Claus reaction of H₂S and SO₂, nearly approaching to thermodynamic equilibrium.

● Claus activity and hydrolysis activity not affected by "leaked O₂".

● High activity,suitable for high space velocity and smaller rector volume.

● Longer service life without the formation of sulfate due to process fluctuation with the regular catalysts.

Main technical indexes of A-988 TiO₂ Based Catalyst for Sulfur Recovery

Sulfur recovery is an important process for natural gas processing plants and refineries. The raw feed streams often contain gases, such as H₂S and CO₂. H₂S is a highly toxic gas and contributes to SO₂ emissions. To comply with environmental regulations, the sulfur species are converted to elemental sulfur and water via sulfur recovery technologies such as Claus Sulfur Recovery Units and Tail Gas Treatment Units.

The products are suitable for Claus sulfur recovery units in the petrochemical and coal chemical industries, and also applicable to sulfur recovery in catalytic oxidation processes such as the Clinsulf process. It can be loaded full bed in any rector or in combination with other catalysts of different types or functions. Used in the primary reactor, it can promote hydrolysis rate of organic sulfur, in secondary and tertiary reactors increase the total sulfur conversion.

Based on the excellent performance of A988 TiO₂ Based Catalyst, we recommend using it for COS and CS₂ hydrolysis in the first reactor, which raises Claus conversion rate in the second and third reactors. A988 TiO₂ Based Catalyst can be used on imported devices to replace imported catalysts and promoted on the other sulfur recovery units.

A988 TiO₂ Based Catalyst is packaged in a cardboard drum (lined with a plastic bag inside), each drum has a net weight of 40kg. Keep it dry and avoid contact with other chemical products, rolling is prohibited during transport. Sealed storage for 3~5 years without affecting its quality.

▲ Temperature: 220~350℃

▲ Pressure: ~0.2MPa

▲ Space velocity: 200~1500h^-1



quipment



Ball forming equipment

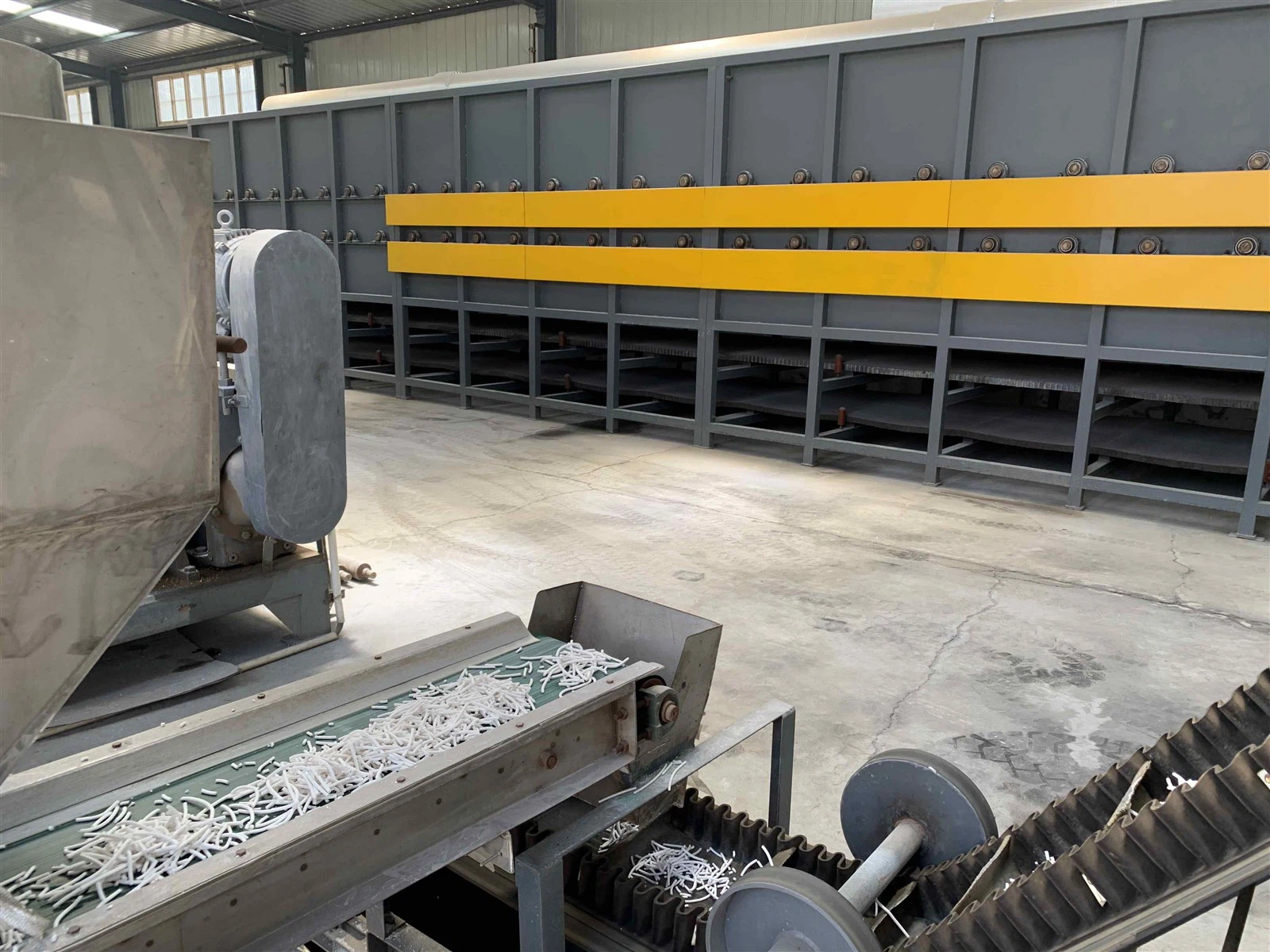

extrusion equipment

extrusion equipment

packaging

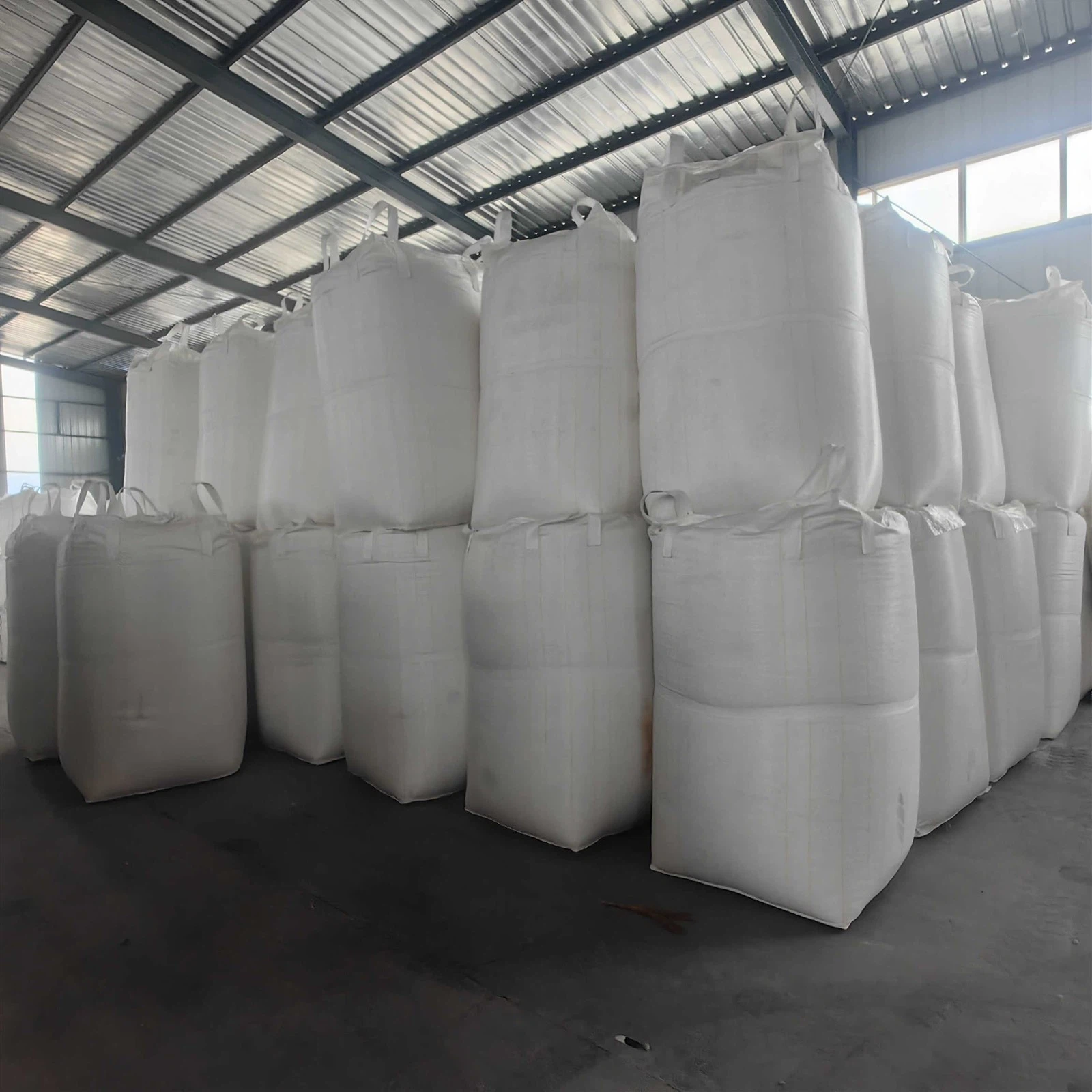

Jumbo bag

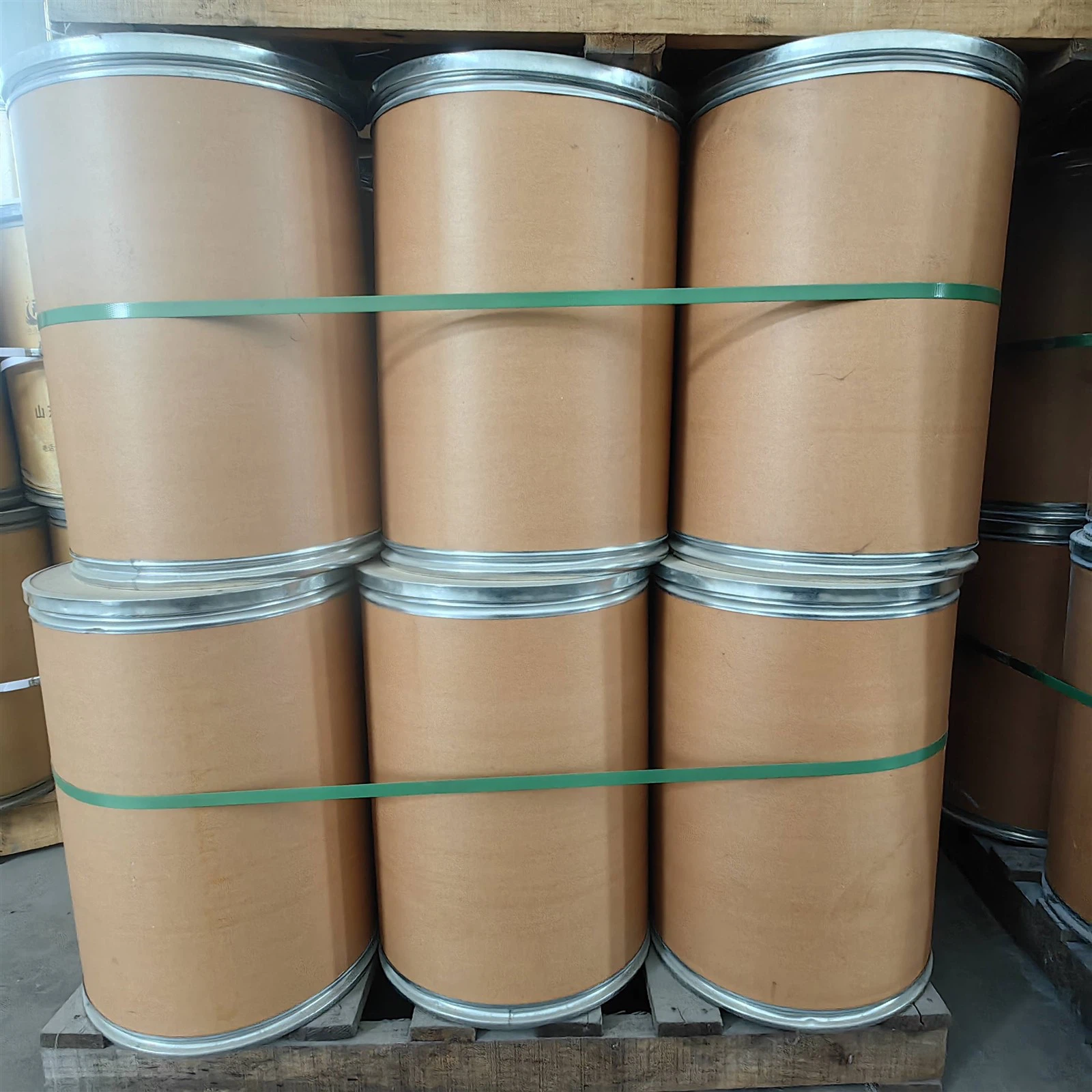

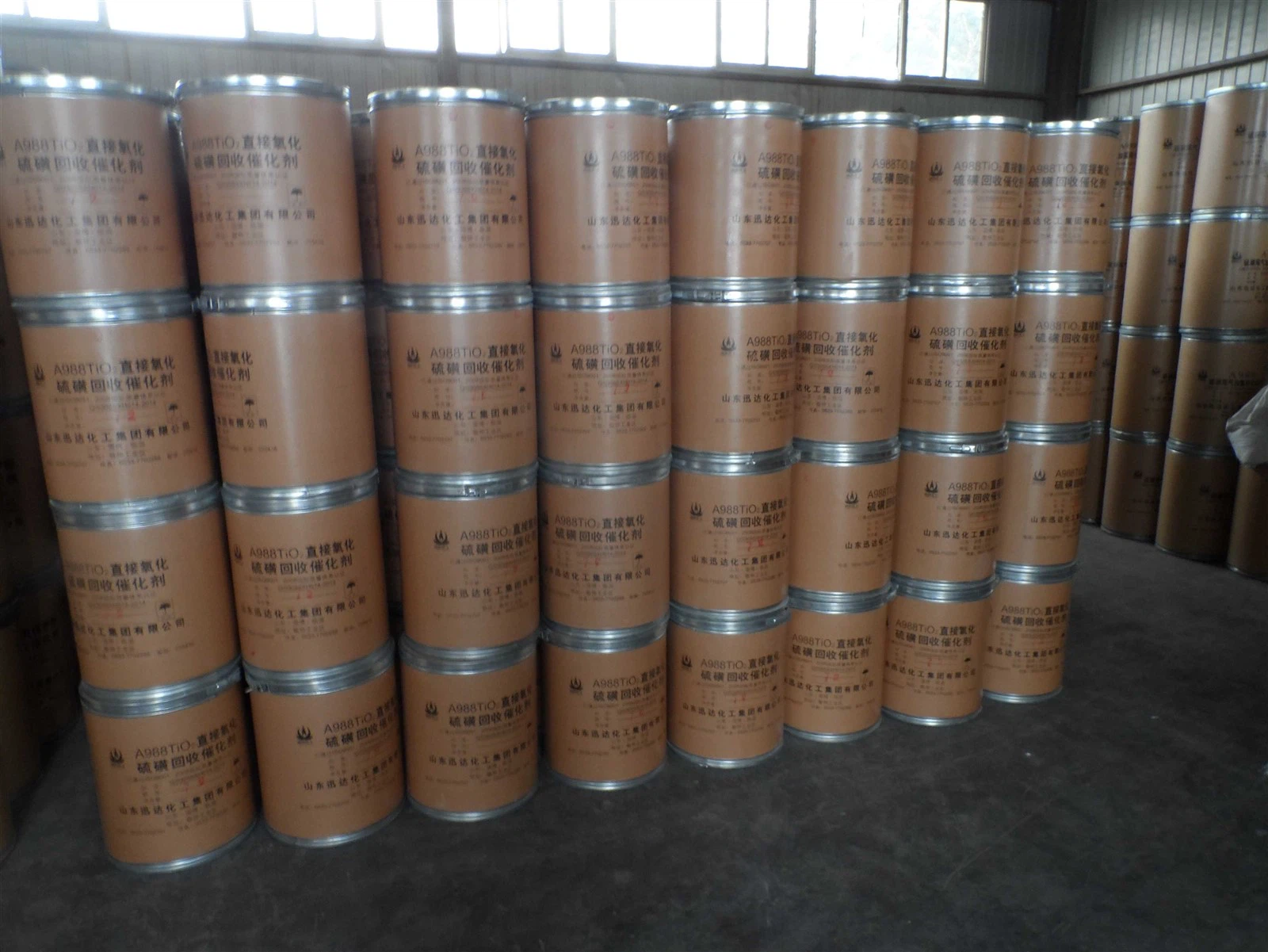

Cardboard drum

Cardboard drum
